Factory Direct Sale | Four-wheel Alignment Scissor Lift (Bottom-mounted)
Product Highlights:
- Flush-mounted installation with a rated lifting capacity of up to 4500KG
- Arm tubes are made of 16Mn thickened wall material, ensuring stable lifting
- Maximum lifting height of 2050 MM for enhanced user-friendliness
- Widened 680MM platform with an overall flat top design for smoother vehicle access
- Equipped with a standard secondary lifting device and single-side sliding platform, suitable for vehicles with different wheelbases
- Fitted with a mechanical safety lock
- Hydraulic system adopts a patented one-button leveling design
- Intelligent computerized control for easier operation
- 16Mn material extended side sliding plates to realize four-wheel alignment function
- Standard hydraulic explosion-proof valve
- Standard emergency manual unlocking function
- 24V safe operating voltage
- Optional double-side sliding for the secondary lifting platform
- Optional secondary lowering function

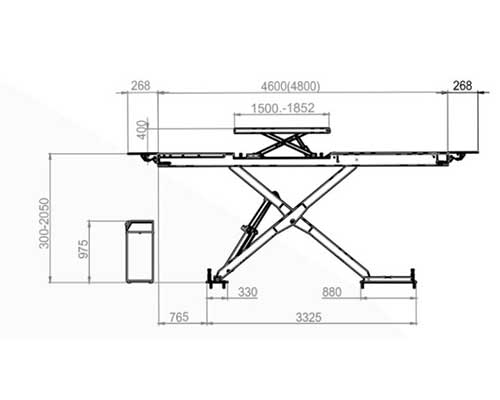

Technical Parameters:
| Parameter | 450-WT46E | 450-WT48E |
| Lifting Capacity | 4500kg | 4500kg |
| Auxiliary Lifting Capacity | 3000kg | 3000kg |
| Lifting Height | 2050mm | 2050mm |
| Minimum Height | 300mm | 300mm |
| Auxiliary Lifting Height | 400mm | 400mm |
| Platform Length | 4600mm | 4800mm |
| Platform Width | 680mm | 680mm |
| Platform Spacing | 900mm | 900mm |
| Motor Power | 3.5KW | 3.5KW |
| System Pressure | 250bar | 250bar |
| Net Weight / Gross Weight | 2150kg / 2310kg | 2240kg / 2390kg |
