Factory Direct Sale | High Performance Gantry Lift Design
Product Highlights:
- Column made of 5mm steel plate for guaranteed strength
- 16mm base plate ensures stable foundation
- High-strength trolley design, bent from 14mm plate
- Reinforced arm design to prevent deformation
- High-strength fine-tooth lock, tighter engagement
- Ø115mm sheave reduces steel rope wear for smooth operation
- Power unit can be installed in two ways based on site conditions

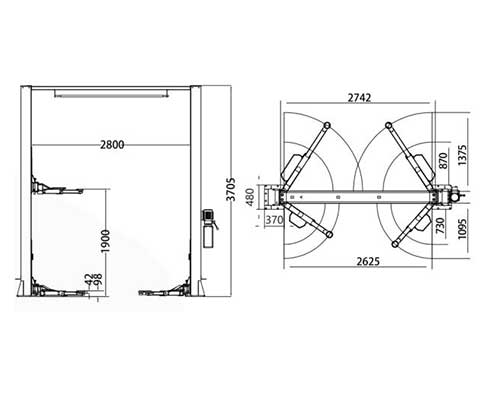

Technical Parameters:
| Model | ALPHA 40E |
| Lifting Capacity | 4000 kg |
| Lifting Time | 40 s |
| Lifting Height | 1900 mm |
| Min. Height | 105 mm |
| Overall Height | 2830 mm |
| Between Columns | 2800 mm |
| Overall Width | 3350 mm |
| Motor Power | 2.2 kW |
| Power Supply | 220V / 380V |
| Net / Gross Weight | 592 kg / 615 kg |
| Main Package Size | 2900 × 460 × 700 mm |
| Accessory Package Size | 780 × 280 × 310 mm |
| Release Method | Manual Release on Both Sides |
